#include <IReflectableData.h>

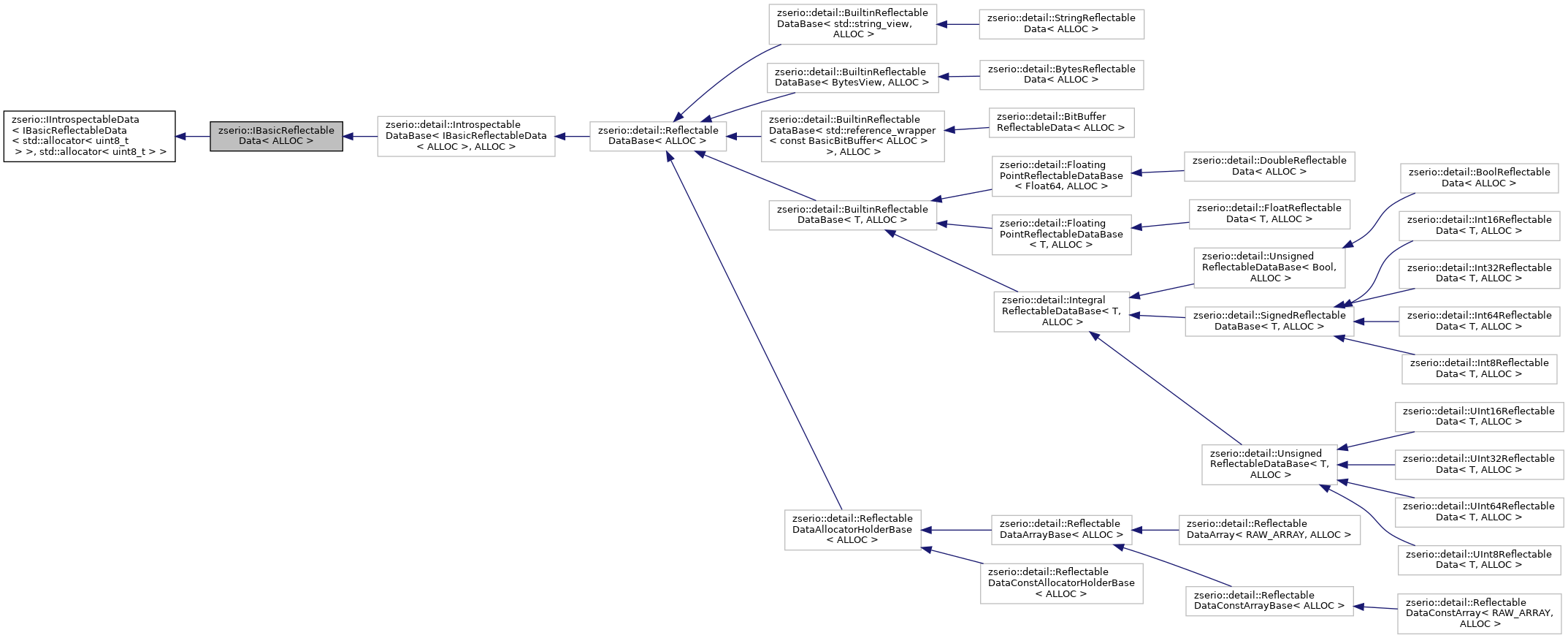

Inheritance diagram for zserio::IBasicReflectableData< ALLOC >:

[legend]

Collaboration diagram for zserio::IBasicReflectableData< ALLOC >:

Public Types
using	Ptr = std::shared_ptr< IBasicReflectableData >

using	ConstPtr = typename IIntrospectableData< IBasicReflectableData< ALLOC >, ALLOC >::ConstPtr

Public Types inherited from zserio::IIntrospectableData< IBasicReflectableData< std::allocator< uint8_t > >, std::allocator< uint8_t > >
using	ConstPtr = std::shared_ptr< const IBasicReflectableData< std::allocator< uint8_t > > >

Public Member Functions
	~IBasicReflectableData () override=default

virtual Ptr	getField (std::string_view name)=0

virtual void	setField (std::string_view name, const BasicAny< ALLOC > &value)=0

virtual Ptr	createField (std::string_view name)=0

virtual void	resize (size_t size)=0

virtual Ptr	at (size_t index)=0

virtual Ptr	operator[] (size_t index)=0

virtual void	setAt (const BasicAny< ALLOC > &value, size_t index)=0

virtual void	append (const BasicAny< ALLOC > &value)=0

virtual Ptr	find (std::string_view path)=0

virtual Ptr	operator[] (std::string_view path)=0


virtual BasicAny< ALLOC >	getAnyValue (const ALLOC &allocator)=0

virtual BasicAny< ALLOC >	getAnyValue ()=0

Public Member Functions inherited from zserio::IIntrospectableData< IBasicReflectableData< std::allocator< uint8_t > >, std::allocator< uint8_t > >
virtual	~IIntrospectableData ()=default

virtual const IBasicTypeInfo< std::allocator< uint8_t > > &	getTypeInfo () const=0

virtual bool	isArray () const=0

virtual ConstPtr	getField (std::string_view name) const=0

virtual std::string_view	getChoice () const=0

virtual size_t	size () const=0

virtual ConstPtr	at (size_t index) const=0

virtual ConstPtr	operator[] (size_t index) const=0

virtual ConstPtr	operator[] (std::string_view path) const=0

virtual bool	getBool () const=0

virtual int8_t	getInt8 () const=0

virtual int16_t	getInt16 () const=0

virtual int32_t	getInt32 () const=0

virtual int64_t	getInt64 () const=0

virtual uint8_t	getUInt8 () const=0

virtual uint16_t	getUInt16 () const=0

virtual uint32_t	getUInt32 () const=0

virtual uint64_t	getUInt64 () const=0

virtual float	getFloat () const=0

virtual double	getDouble () const=0

virtual BytesView	getBytes () const=0

virtual std::string_view	getStringView () const=0

virtual const BasicBitBuffer< std::allocator< uint8_t > > &	getBitBuffer () const=0

virtual int64_t	toInt () const=0

virtual uint64_t	toUInt () const=0

virtual double	toDouble () const=0

virtual ConstPtr	find (std::string_view path) const=0

virtual BasicAny< std::allocator< uint8_t > >	getAnyValue (const std::allocator< uint8_t > &allocator) const=0

virtual BasicAny< std::allocator< uint8_t > >	getAnyValue () const=0

virtual BasicString< RebindAlloc< std::allocator< uint8_t >, char > >	toString (const std::allocator< uint8_t > &allocator) const=0

virtual BasicString< RebindAlloc< std::allocator< uint8_t >, char > >	toString () const=0

Detailed Description

template<typename ALLOC = std::allocator<uint8_t>>
class zserio::IBasicReflectableData< ALLOC >

Interface for reflection of the Zserio objects using Data abstraction.

This interface allows modification of all information available in the Data abstraction of the Zserio objects.

Definition at line 19 of file IReflectableData.h.

Member Typedef Documentation

◆ ConstPtr

template<typename ALLOC = std::allocator<uint8_t>>

using zserio::IBasicReflectableData< ALLOC >::ConstPtr = typename IIntrospectableData<IBasicReflectableData<ALLOC>, ALLOC>::ConstPtr

Shared pointer to the constant reflectable interface.

Definition at line 26 of file IReflectableData.h.

◆ Ptr

template<typename ALLOC = std::allocator<uint8_t>>

using zserio::IBasicReflectableData< ALLOC >::Ptr = std::shared_ptr<IBasicReflectableData>

Shared pointer to the reflectable interface.

Definition at line 23 of file IReflectableData.h.

Constructor & Destructor Documentation

◆ ~IBasicReflectableData()

template<typename ALLOC = std::allocator<uint8_t>>

zserio::IBasicReflectableData< ALLOC >::~IBasicReflectableData ( )

overridedefault

Destructor.

Member Function Documentation

◆ append()

template<typename ALLOC = std::allocator<uint8_t>>

virtual void zserio::IBasicReflectableData< ALLOC >::append ( const BasicAny< ALLOC > & value )

pure virtual

Appends an element at the given index within the reflected array.

Parameters

value Value to append.

Exceptions

CppRuntimeException When the reflected object is not an array.

◆ at()

template<typename ALLOC = std::allocator<uint8_t>>

virtual Ptr zserio::IBasicReflectableData< ALLOC >::at ( size_t index )

pure virtual

Gets reflectable to an array element.

Note: Can be called only when the reflected object is an array.

Returns: Reflectable to an array element on the given index.

Exceptions

CppRuntimeException When the reflected object is not an array or when the given index is out of bounds of the underlying array.

◆ createField()

template<typename ALLOC = std::allocator<uint8_t>>

virtual Ptr zserio::IBasicReflectableData< ALLOC >::createField ( std::string_view name )

pure virtual

Creates a default constructed field within current object and returns reflectable pointer to it.

Note: When the field already exists, it's reset with the new default constructed value.

Parameters

name	Name of the optional field to create.

Returns: Reflectable to just created object.

Exceptions

CppRuntimeException When the reflected object is not a compound type or when the field with the given name doesn't exists.

◆ find()

template<typename ALLOC = std::allocator<uint8_t>>

virtual Ptr zserio::IBasicReflectableData< ALLOC >::find ( std::string_view path )

pure virtual

Universal accessor to zserio entities within the zserio sub-tree represented by the introspectable object.

Supports dot notation corresponding to the tree defined in zserio language. Can access fields or parameters or call functions within the zserio sub-tree.

Examples:

'fieldA.param' - Gets introspectable to parameter 'param' within the parameterized field 'fieldA'.
'child.getValue' - Gets introspectable to result of the function called on field ̈́'child'.
'child.nonexisting.field' - Gets nullptr since the path doesn't represent a valid entity.

Parameters

path	Dot notation corresponding to the zserio tree.

Returns: Introspectable to the result of the given path. Returns nullptr when the path doesn't exist or when the requested operation throws CppRuntimeException.

◆ getAnyValue() [1/2]

template<typename ALLOC = std::allocator<uint8_t>>

virtual BasicAny<ALLOC> zserio::IBasicReflectableData< ALLOC >::getAnyValue ( )

pure virtual

Gets any value within the reflected object.

For builtin types, enums and bitmasks the value is "returned by value" - i.e. it's copied into the any holder, but note that for bytes the any holder contains Span, for string the any holder contains an appropriate string_view and for compounds, bit buffers and arrays the value is "returned by reference" - i.e. the any holder contains std::reference_wrapper<T> with the reference to the compound type or the raw array type.

Note: For bit buffers only const reference is available.; Overloads without parameter use default constructed allocator.

Parameters

allocator Allocator to use for the value allocation.

Returns: Any value.

◆ getAnyValue() [2/2]

template<typename ALLOC = std::allocator<uint8_t>>

virtual BasicAny<ALLOC> zserio::IBasicReflectableData< ALLOC >::getAnyValue ( const ALLOC & allocator )

pure virtual

Gets any value within the reflected object.

For builtin types, enums and bitmasks the value is "returned by value" - i.e. it's copied into the any holder, but note that for bytes the any holder contains Span, for string the any holder contains an appropriate string_view and for compounds, bit buffers and arrays the value is "returned by reference" - i.e. the any holder contains std::reference_wrapper<T> with the reference to the compound type or the raw array type.

Note: For bit buffers only const reference is available.; Overloads without parameter use default constructed allocator.

Parameters

allocator Allocator to use for the value allocation.

Returns: Any value.

◆ getField()

template<typename ALLOC = std::allocator<uint8_t>>

virtual Ptr zserio::IBasicReflectableData< ALLOC >::getField ( std::string_view name )

pure virtual

Gets reflectable to the field (i.e. member) with the given schema name.

Note: Can be called only when the reflected object is a zserio compound type.

Parameters

name	Field schema name.

Returns: Reflectable to the requested field.

Exceptions

CppRuntimeException When the reflected object is not a compound type or when the field with the given name doesn't exist or when the field getter itself throws.

◆ operator[]() [1/2]

template<typename ALLOC = std::allocator<uint8_t>>

virtual Ptr zserio::IBasicReflectableData< ALLOC >::operator[] ( size_t index )

pure virtual

Gets reflectable to an array element.

Note: Can be called only when the reflected object is an array.

Returns: Reflectable to an array element on the given index.

Exceptions

CppRuntimeException When the reflected object is not an array or when the given index is out of bounds of the underlying array.

Overloaded method provided for convenience.

◆ operator[]() [2/2]

template<typename ALLOC = std::allocator<uint8_t>>

virtual Ptr zserio::IBasicReflectableData< ALLOC >::operator[] ( std::string_view path )

pure virtual

Universal accessor to zserio entities within the zserio sub-tree represented by the introspectable object.

Supports dot notation corresponding to the tree defined in zserio language. Can access fields or parameters or call functions within the zserio sub-tree.

Examples:

'fieldA.param' - Gets introspectable to parameter 'param' within the parameterized field 'fieldA'.
'child.getValue' - Gets introspectable to result of the function called on field ̈́'child'.
'child.nonexisting.field' - Gets nullptr since the path doesn't represent a valid entity.

Parameters

path	Dot notation corresponding to the zserio tree.

Returns: Introspectable to the result of the given path. Returns nullptr when the path doesn't exist or when the requested operation throws CppRuntimeException.

Overloaded method provided for convenience.

◆ resize()

template<typename ALLOC = std::allocator<uint8_t>>

virtual void zserio::IBasicReflectableData< ALLOC >::resize ( size_t size )

pure virtual

Resizes the reflected array.

Note: Can be called only when the reflected object is an array.

Parameters

size	New array size.

Exceptions

CppRuntimeException When the reflected object is not an array.

◆ setAt()

template<typename ALLOC = std::allocator<uint8_t>>

virtual void zserio::IBasicReflectableData< ALLOC >::setAt	(	const BasicAny< ALLOC > &	value,
		size_t	index
	)

pure virtual

Sets an element value at the given index within the reflected array.

Parameters

value	Value to set.
index	Index of the element to set.

Exceptions

CppRuntimeException When the reflected object is not an array.

◆ setField()

template<typename ALLOC = std::allocator<uint8_t>>

virtual void zserio::IBasicReflectableData< ALLOC >::setField	(	std::string_view	name,
		const BasicAny< ALLOC > &	value
	)

pure virtual

Sets the field (i.e. member) with the given schema name.

Note: For optional fields, the value can be also nullptr of type std::nullptr_t which allows to reset an optional field.

Parameters

name	Field schema name.
value	Value to set. The type must exactly match the type of the zserio field mapped to C++!

Exceptions

CppRuntimeException When the reflected object is not a compound type or when the field with the given name doesn't exist or when the provided value is of a wrong type or when the field setter itself throws.

The documentation for this class was generated from the following file:

zserio/IReflectableData.h
